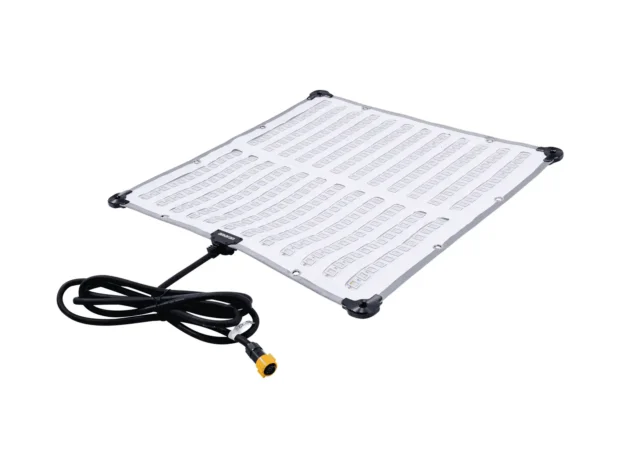

A 2’×2’ RGBWW flexible LED mat delivering 200W output with a broad 2,500–7,500K range, excellent colour accuracy and ±green/magenta control. The F22c packs high punch for its size, runs silent, and rigs fast on stands or frames. Control via Sidus Link or DMX for precise looks, or add diffusion for an ultra-thin soft source on tight sets.
Overview
- 2’×2’ RGBWW flexible mat, 200W output; 6,420+ lux @ 1 m (5600K).
- Wide CCT 2,500–7,500K with HSI & ±green/magenta.
- High fidelity: CRI ≥95, TLCI ≥97.
- Silent passive cooling; 0–100% dimming
- App control via Sidus Link; DMX capable (USB-C adapter).

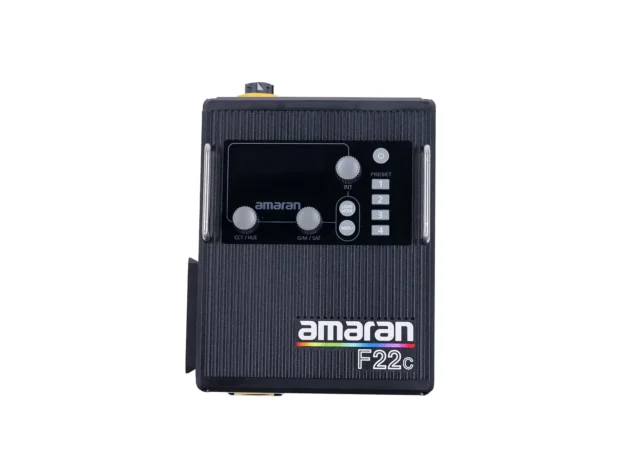

- Portable control box with 48V PSU.
- Battery options incl. V-mount (14.4V half power; 26–28.8V full).
- Lightweight, quick-rig for small crews.

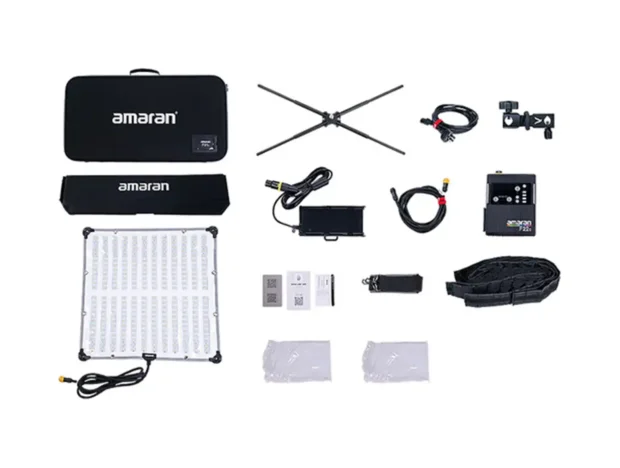

1x Amaran F22c Support Bracket
1x Amaran F22c Control Box
1x Amaran F22c Head Cable Extension (3m)
1x Amaran F22c AC Power Supply
1x Amaran F22c Softbox Frame
1x Amaran F22c Diffusion Cloth 1 (1/2 Grid Cloth)
1x Amaran F22c Diffusion Cloth 2 (2.5 Stop)

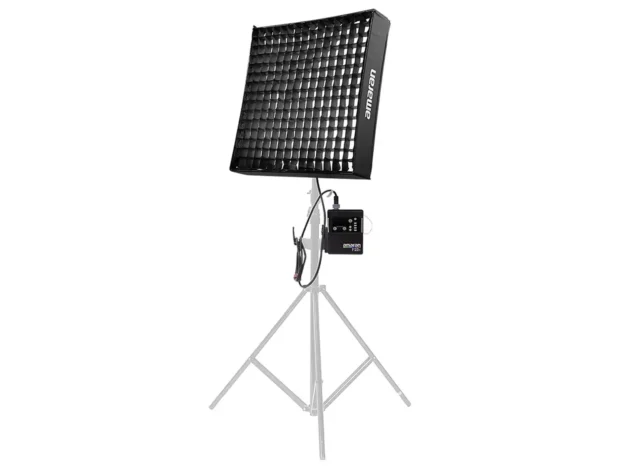

1x Amaran F22c Light Control Grid
1x Amaran F22c Carrying Case
1x Amaran F22c AC Power Supply V-Mount Clamp
1x 13A IEC Cable
1x Master Stand
Start with intent
Pick CCT for base realism, then nudge ±green/magenta to match practicals or camera profile—great for tidying mixed sources without gel.
Soft vs punch

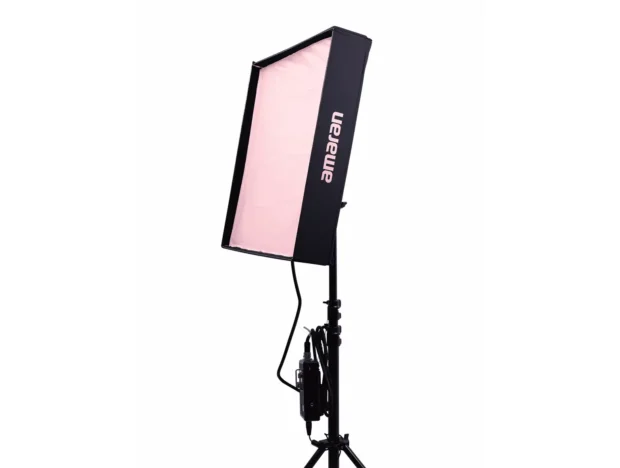

The open mat gives maximum output; add the softbox and choose diffusion strength to trade output for wrap. For room ambience, swap to a lantern modifier.
DMX scenes
For multi-light rigs, map the F22c on DMX for locked repeatability; use Sidus Link on small crews for fast look tweaks from camera.
Battery planning
Expect reduced intensity on 14.4V V-mounts; use 26/28.8V packs or AC when you need full output or dense diffusion.
Tidy the mat
Keep the fabric evenly tensioned in the frame to avoid “bagging” shadows; re-dress after transport. (See assembly notes.)
Colour work
In HSI, set hue/sat for accents; if skin looks sickly under mixed light, pull a slight +G/–G correction before reaching for gels.
Quiet sets
Passive cooling is silent—ideal for drama/dialogue. Still allow a bit of air gap if skinned with heavy diffusion to avoid heat soak.
Can I run it on batteries at full power?
Yes—with 26V/28.8V V-mounts; 14.4V delivers roughly half output.
Does it support DMX?
Yes, via a USB-C to 5-pin DMX512 adapter cable (sold separately).
How bright is it compared to small panels?
Around 6,420+ lux @ 1 m (5600K) open-face—much higher than typical 1×1 panels of similar power, with a larger emitting area.
