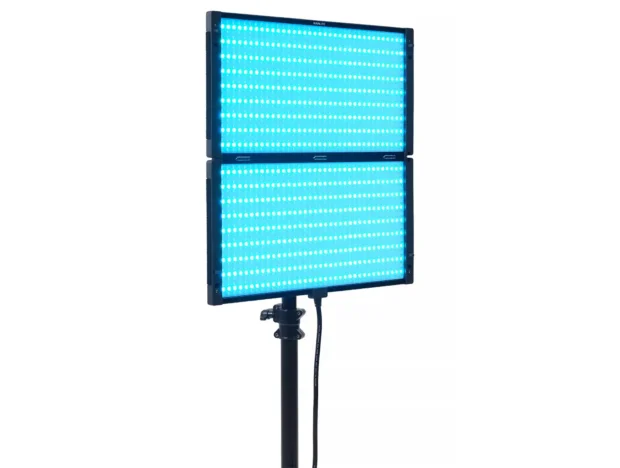

An exceptionally slim 2×2 RGBWW panel that folds to 2×1 for travel yet delivers big-panel punch. PavoSlim 240C offers 2700–7500K with ±150 G/M, 0–100% dimming, and built-in LumenRadio CRMX alongside 2.4 G/Bluetooth/DMX/RDM. Output is strong for its size (≈22,990 lux @1 m, 5600K), with a thin 28.6 mm chassis and 3.44 kg head for easy rigging.
Overview
- 2×2 panel, folds to 2×1 for compact transport.
- CCT 2700-7500K with ±150 G/M adjustment.
- CRI ≈96 / TLCI ≈97; smooth 0–100% dimming.
- 15 built-in special effects: hue loop, CCT loop, intensity loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, firework, explosion, and welding.
- Built-in LumenRadio CRMX, plus 2.4 G, Bluetooth, DMX/RDM, NANLINK App.
- Ultra-slim 28.6 mm body; 3.44 kg head.
- AC or V-mount battery options (DC 14.4–26 V / 48 V).
- 60° native beam; softbox/grid kit commonly available.
| 5600K | 3200K | |
|---|---|---|
| @0.5m | 59800 lux | 53990 lux |
| @1m | 22990 lux | 20890 lux |
| @2m | 6561 lux | 5968 lux |
Use Cases
- Interview keys and soft wraps where a thin, closeable source is needed (low headroom, doorway rigs).
- Fast turnarounds on branded/doc shoots—fold, bag, and go without losing punch.
- Colour effects and precise skin-tone matching using G/M trim and CRMX control.
1x Pavolslim 240C Stand Mount
1x Pavoslim 240C Babypin Mount
1x Pavoslim 240C Control Unit
1x Nanlite Pavoslim 240C Quick Release Clamp
1x Pavoslim 240C 14pin Header Cable
1x 13A PowerCON Cable
1x Pavoslim 240C softbox
1x Pavoslim 240C 2×2 Standard Diffusion
1x Pavoslim 240C 2×2 Lite Diffusion
1x Pavoslim 240C 2×2 Eggcrate
1x Pavoslim 240C Carry Bag
1x Master Stand
1x XO Sandbag
Folded travel, full-size output
Pack as a 2×1 to move quickly, then unfold to 2×2 for softer wrap without building a frame.
Match practicals fast
Use ±150 G/M to neutralise green spikes from practicals or HMIs—dial by eye on a vectorscope or with a colour-meter reading.
Control spill

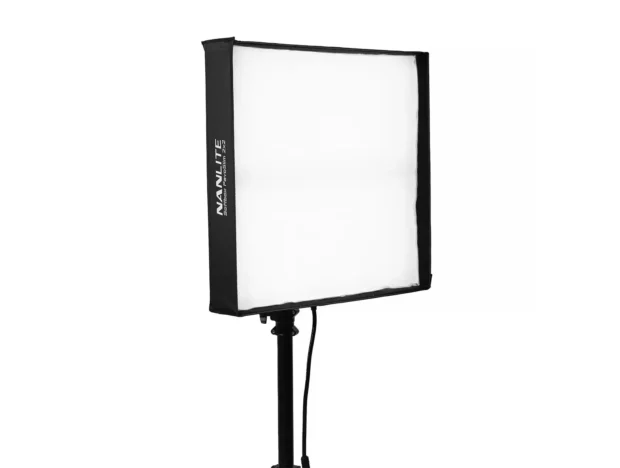

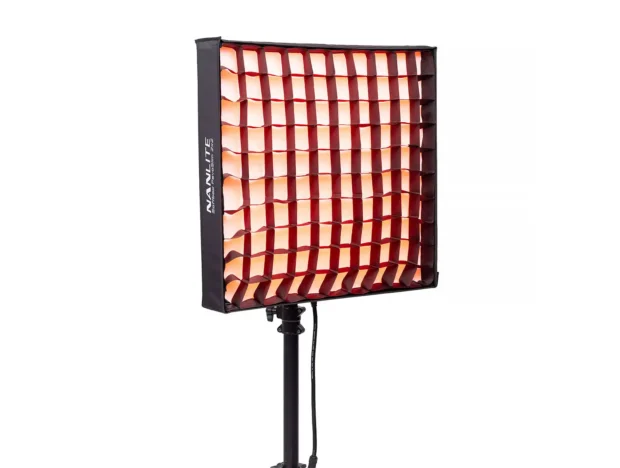

Add the softbox/grid to tighten the 60° beam and keep backgrounds clean in tight locations.
Wireless discipline
When cabling is messy, enable CRMX and park the control box near power; set look presets on the app for quick scene changes.
Keep it close
The thin body lets you fly the panel just out of frame; closer placement improves softness and efficiency.
