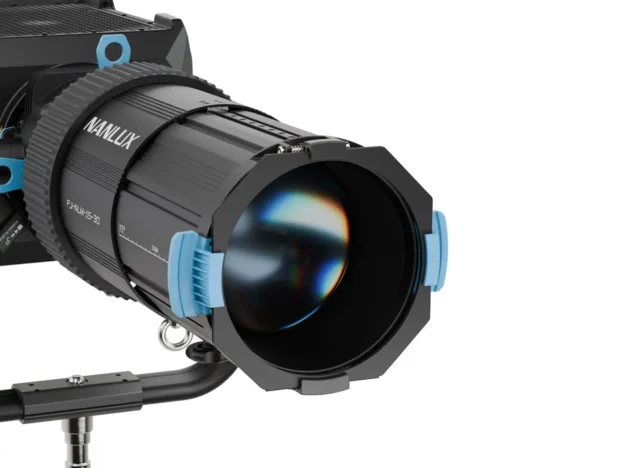

Zoomable 15-30° projection lens for the Nanlux Evoke series. Delivers clean, controlled beams with zoom, accurate focus, four shutter blades and A-size gobo support. Purpose-built NL-mount optics minimise spill and distortion while boosting illuminance (up to ~7.5× vs bare). Supplied in a flight case with accessories for fast, repeatable beam shaping.
Overview
- 15-30° zoom range with precise focus and edge uniformity.
- Designed for Evoke fixtures (NL mount).
- Up to ~7.5× illuminance increase vs. lamp only (high-efficiency optics).
- Integrated cutting shutters; supports A-size gobos & optional iris.
- Aspherical optical design for low CA, low distortion, ~78% beam uniformity.
- Robust alloy/nylon build with integrated yoke; approx. 11.85 kg
Use Cases
- Punchy, cuttable key or background accents with crisp edges.
- Textures & breakup via gobos for depth on walls, floors or scenic.
- Long-throw shafts through atmosphere; controllable pools for interviews.

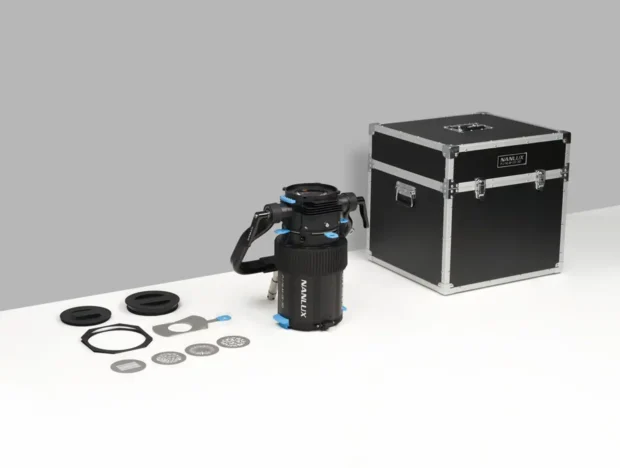

1x NL Mount Cover
1x PJ-NLM-15-30 Lens cap
1x NL Mount 4 Gobos (NLM01, NLM02, NLM03, NLM04)
1x NL Mount Custom Gobo Frame
1x NL Mount Colour Filter Holder
1x NanLux PJ-NLM-AI Iris Diaphragm
1x Nanlux PJ-NLM15-30 Case
Edge control
After framing with shutters, slightly over-focus then back to hit the cleanest edge; uniformity is best near the centre of the zoom.
Plan the throw
At 15° you’ll get tight, punchy pools; at 30° expect wider coverage with softer edge fall-off—set distance first, then fine-tune zoom.
Boost without spill
The optical path reduces stray light; add black wrap/flags only when working near reflective surfaces to keep contrast high.
Gobos that read
For textured backgrounds, start with pale grey scenic and angle the head off-axis; add haze sparingly to reveal beams without killing contrast.
Iris for shape
The optional iris gives fast round pools and quick level trims without touching dimmer cues—handy during interviews.
Weight & rigging
At ~11.85 kg, rig on a combo/hi-roller with a junior receiver, counterweight when booming, and always sandbag.
