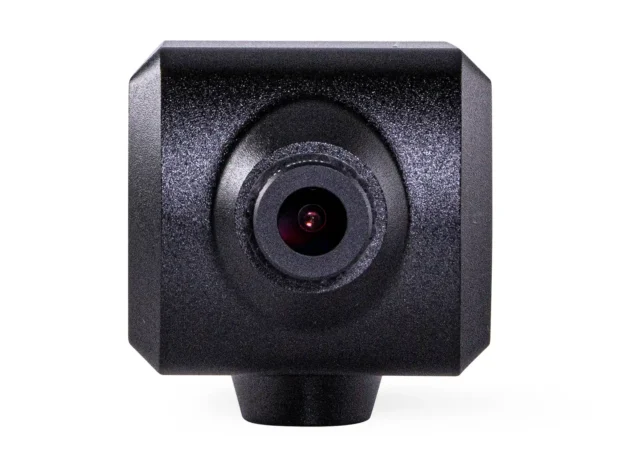

The Marshall CV504 is a compact Full HD POV camera designed for tight spaces, fixed rigs and discreet camera positions. It uses a 1/2.8-inch Sony sensor and outputs 10-bit 4:2:2 video over 3G-SDI, with interchangeable M12 lenses for different fields of view. Its small aluminium body, low power draw and remote control options make it useful for reality, live, specialist and hidden-camera setups.
Overview
- Full HD POV camera with 1920 x 1080 progressive and interlaced output.
- 3G-SDI output with 10-bit 4:2:2 BT.709 video.
- 1/2.8-inch Sony CMOS sensor with 2.2 megapixels.
- Interchangeable M12 lens mount for different focal lengths and fields of view.
- Supplied with a 4mm IR F2.0 and a 2.8mm F2.0 lens.
- Strong low-light performance, with day and night modes and removable IR cut filter.
- Remote adjustment and camera matching via RS485, software or compatible third-party controllers.
- Compact aluminium body suited to discreet or difficult camera positions.
Use Cases
- Reality TV and fixed-rig shooting where a small camera needs to disappear into the environment.
- POV, vehicle, studio and specialist camera positions where a larger body would be impractical.
- Live and multi-camera setups that benefit from direct SDI output and remote camera adjustment.
1x Marshall Hirose Breakout Cable
1x Marshall 2.8mm F2.0 M12 Mount Fisheye Lens
1x Marshall 4mm IR F2.0 M12 Mount Lens
1x 12V AC power adapter
Choose the lens for the position.
The M12 mount is one of the CV504’s biggest advantages. A wider lens works well for cramped interiors and vehicle rigs, while longer M12 options are better for tighter framing from fixed positions.
Use remote control for multi-camera matching.
RS485 and compatible control software let you adjust exposure, white balance and other settings without physically reaching the camera, which is especially useful once it is rigged into a difficult position.
Take advantage of the SDI workflow.

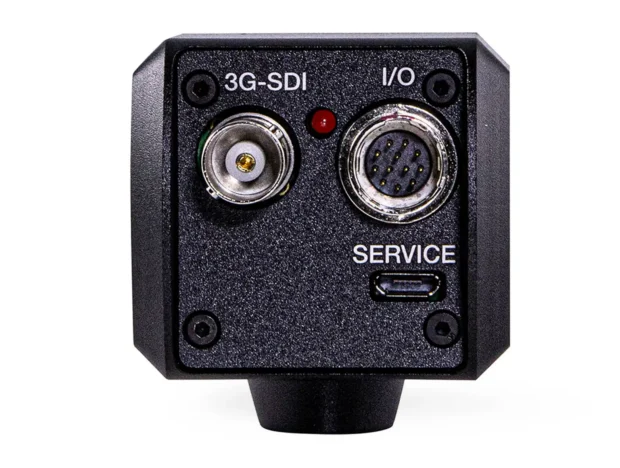

Direct 3G-SDI output makes the camera easy to integrate into galleries, recorders, vision mixers and long cable runs without needing an HDMI converter.
Use the low-light modes carefully.
The camera performs well in low light and includes a night mode, but test the look before relying on it for critical colour work, particularly when the IR cut filter changes behaviour.
Keep the rig genuinely small.
The body is tiny, so use compact mounts, low-profile cabling and appropriately sized lenses to preserve the advantage of the form factor.
Plan power and breakout cabling early.
The Hirose breakout carries several functions, so route and secure it before finalising the camera position to avoid placing strain on the connector.
